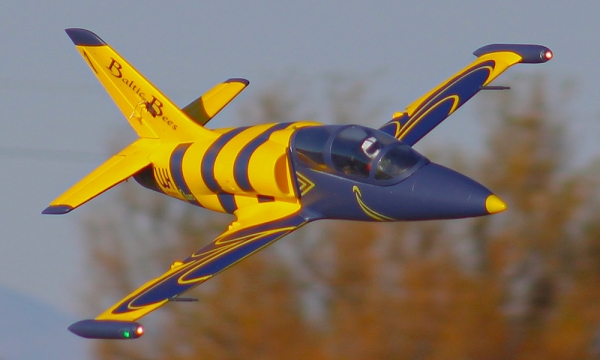

The FlyFans L-39 64mm EDF jet is crafted for both ease of use and adaptability, presenting an ideal training aircraft for a broad spectrum of pilots, including those new to EDF jets. It is outfitted with a powerful 6S brushless motor and a 40-amp ESC with reversible thrust , paired with a 12-blade 64mm fan, to ensure outstanding speed, robust thrust, and a turbine-like auditory experience, setting it apart from its contemporaries. The jet features an integrated shock-absorbing, retractable metal landing gear system with aluminum struts, expertly engineered to reduce drag by retracting during flight, thereby enhancing aerodynamic efficiency. Additionally, it boasts a flap system that increases lift and allows for slower, more controlled landing speeds. Lastly, the aircraft also incorporates high-intensity navigation LED lights, elevating visibility, safety, and aesthetics, while empowering pilots to maintain control in low-light conditions.
|
- 6 operable channels (Aileron, Elevator, Throttle, Rudder, Retract, Flaps, Steerable Nose Gear)
- 6S configuration paired with a 64mm (12-blade) EDF system, featuring a high-RPM brushless motor and a 40A ESC with reversible thrust, delivers exceptional performance and near-instant throttle response
- Durable, shock-absorbing retractable metal landing gear system with aluminum struts
- Integrated wing connector for easy installation or removal of main wing
- Features a flap system that increases lift and allows for slower, more controlled landing speeds
- High-intensity navigation LED lights, elevating visibility, safety, and aesthetics, while empowering pilots to maintain control in low-light conditions
- Glueless assembly
- Constructed of durable EPO flex foam
|
Video:
- Airplane (most components preinstalled, some assembly required)
- Pilot Figure
- Aircraft User manual (Click to View)
- ESC User Manual (Click to View)
|
- 6 channel transmitter and receiver (not included)
- Li-Po battery balance charger (not included)
- Recommded 6S 1800mAh~3200mAh 35C Li-Po battery (not included)
|
This packaging option indicates what comes included and does not mean a completely assembled item. Most onboard electronic components are pre-assembled out of the box though some assembly is still required. This packaging option does not include the radio system, battery or charger, unless noted otherwise. |
What's the difference between RTF, PNP, and ARF? |
The main difference is what is included in the package. Since there are no set parameters for packaging options in this hobby, different manufacturers may vary their definitions of what is included.
ARF indicates that all the foam pieces along with the crucial components of aesthetic appearance are included in the package. Some on-board electronics may be included with an ARF such as the electric retracts and will be noted on the specifications of the model. Note that this packaging option is recommended for advanced individuals with knowledge in customizing their onboard electronic components or for those not intending to fly this model.
PNP indicates that all the foam pieces along with the crucial components of aesthetic appearance and electronic components are included with the exception of the battery, balance charger, and radio system (transmitter and receiver). Most on-board electronics are pre-installed by the manufacturer. Note that this packaging option is recommended for those who already own a radio system, battery and balance charger.
RTF includes all the foam pieces along with the crucial components of aesthetic appearance, electronic components, battery, balance charger and radio system unless noted otherwise. Most on-board electronics are pre-installed by the manufacturer. Note that this packaging option is recommended for beginners or first-time pilots. Be aware of balance charger accessories that are not included (wall adapters usually sold separately). Advanced models with the RTF option may or may not come with a battery or charger. Please read the ‘Package Includes’ area carefully under the item’s for clarification of what is included with the package. |
Wingspan | 865mm (34 in) |
Length | 1106mm (43.5 in) |
Drive System | 2840-KV2300 brushless motor |
EDF Diameter | 64mm (12-blade impeller) |
Retract System | Servoless metal retracts w/ trailing link suspension struts |
Servo | Eight 9g digital |
ESC | 40A (2S-6S w/ reversible thrust) |
Recommended Battery (Not Included) | 22.2V 1800mAh~3200mAh ≥35C Li-Po |
|
