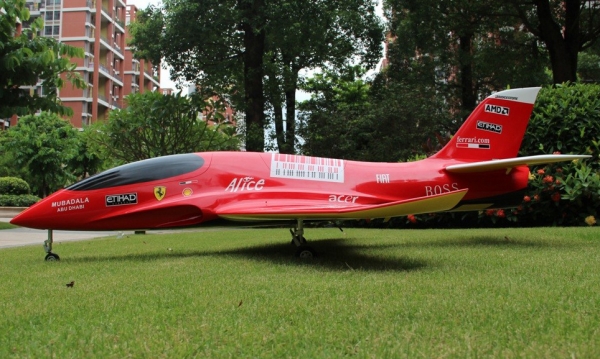

Pilot-RC 1.8m predator sport jet with Enjet E80 turbine
Overview
A whole new line of sport jet, designed from the ground up with performance in mind. Capable of both high and low speed flying and manouvers and even options for converting to full 3D no manouver is out of reach for the Predator.
Features
Full composite wing and elevator with fibreglass fuselage
Two piece wing and two piece stabiliser all for easy transport
Painted outside the mold so no seam lines
Pre-installed tubes for included servo extension leads
Pre-installed fibreglass control horns
Specifications
Wing Area
832 “² (5,370 cm²)
Included Hardware (ARF)
Complete air frame (including aluminium wing-tubes)
Pilot-RC electric retracts and electric brakes specific for this model
Servo extension leads
Dual wall tail pipe (for 45-85N turbines)
2,000ml fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Air trap UAT
Pre-prepared pushrods with ball links
Required Hardware (ARF to RTF)
Engine: 45-85N
Servos: 8 high torque // Uses x1 per aileron, x1 per flap, x1 per elevator, x1 on rudder and x1 for steering
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories
Recommended Hardware
Servos: Pilot-Rc PY08AH (8Kg – 0,095s at 7.4v)
Servos Arms: Pilot-Rc 1,2″ Aluminium arms (included with Pilot-Rc servos)
Build Info
Flap 2 (landing)
61mm down
Center of Gravity
223mm from the front leading edge on the root of the wing
PNP (Turbine Ready)
- Complete air frame (including aluminium wing-tubes)
- Pilot-RC electric retracts and electric brakes specific for this model
- Servo extension leads
- Dual wall tail pipe (for 45-85N turbines)
- 2,000ml fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
- Air trap UAT
- Pre-prepared pushrods with ball links
- 8X Pilot-RC high torque servos pre-installed
- Required Engine: 45-85N
- Required all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories
|
