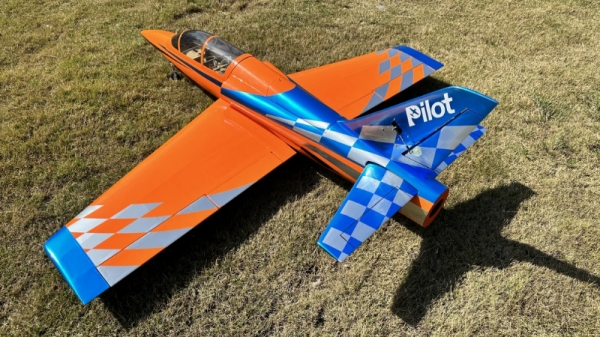

Pilot-RC Dolphin 6Kg final prototype flight testing completion
Overview
Designed as a perfect first jet trainer or just your everyday worry free easy to handle acrobatic jet. Easily repairable wooden design with a simple well known build method and simple gear, just drop equipment in and go fly!
New stronger fuselage with carbon infused wood construction.
Features
Wood construction, strong, lightweight and easily repairable construction methods
NEW! Carbon infused wood construction used in the fuselage for even greater strength
Two piece wing and two piece stabiliser all for easy transport
NEW! Patented quick assembly system for wings
Pre-installed hinges (glued and pinned)
Servo operated gear doors
Optional LED Light Set
Specifications
Wingspan
1850mm (72 in)
Length
1800mm (71 in)
Wing Area
972 "² (6,270 cm²)
Weight
7.6kg (16.7 lb)
Included Hardware
Complete air frame (including aluminium wing-tubes and fibreglass control horns)
Pilot-RC electric retracts and electric brakes
Dual wall tail pipe (for 60N turbines)
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Air trap UAT
Pre-prepared pushrods with ball links
Required Hardware
Engine: 60N
Servos: 8x high torque // Uses x1 per aileron, x1 per flap, x1 per elevator, x1 on rudder and x1 for steering
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories
Recommended Hardware
Servos: Pilot-Rc PW16AH (16Kg – 0,057s at 8.4v)
Servo Arms: Pilot-Rc 1,2" Aluminium arms (included with Pilot-Rc servos)
Build Info
Surface
Travel each way
Aileron
25mm
Elevator
20mm
Rudder
48mm
Flap 1 (take-off)
33mm down
Flap 2 (landing)
47mm down
Center of Gravity
205mm from the front leading edge on the root of the wing
PNP (Turbine Ready)
Complete air frame (including aluminium wing-tubes and fibreglass control horns)
Pilot-RC electric retracts and electric brakes specific for this model
Dual wall tail pipe (for 60N turbines)
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Air trap UAT
Pre-prepared pushrods with ball links
8X Pilot-RC high torque servos and servo extension leads, pre-installed
Required Engine: 60N
Required all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories
