Overview

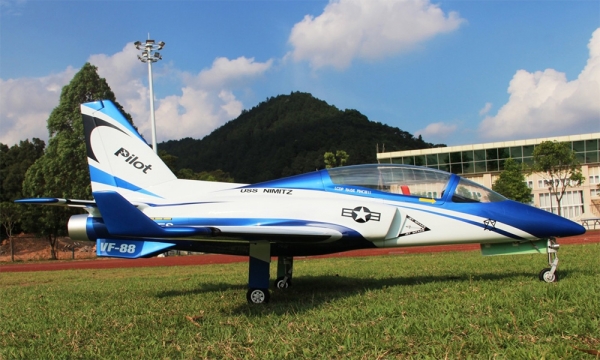

Viperjets are synonymous for a great flying jet, and this one really fulfils with expectations. Fast, slow, scale, acrobatic, fun, easy, it simply ticks all the boxes for your next jet!
Features
Full composite construction, lightweight and strong
Removable rudder, two piece wing and two piece stabiliser all for easy transport
Painted outside the mold so no seam lines
Pre-installed tubes for servo extension leads
Servo operated gear doors
Included Hardware
Complete air frame (including aluminium wing-tubes and fibreglass control horns)
Pilot-RC electric retracts and electric brakes specific for this model
Scale cockpit (minus pilot)
Dual wall tail pipe (for 80-140N turbines)
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Air trap UAT
Pre-prepared pushrods with ball links
Required Hardware
Engine: 80-140N
Servos: 8 high torque (minimum 20kg) // Uses x1 per aileron, x1 per flap, x1 per elevator, x1 on rudder and x1 for steering
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories
Recommended Hardware
Servos: Pilot-Rc PY20AL (20Kg – 0,15s at 8,4v) or Pilot-Rc PY20AH (22Kg – 0,12s at 8,4v)
Servos Arms: Pilot-Rc 1,2″ Aluminium arms (included with Pilot-Rc servos)
Simple Servo Adjuster: Use single channel for gear and doors
Build Info
Flap 2 (landing)
65mm down
Center of Gravity
160-177mm from the front leading edge on the root of the wing
Package & Build Options
Choose one of following Package Options from the drop-down menu
ARF PRO
- Complete air frame (including aluminium wing-tubes and fibreglass control horns)
- Pilot-RC electric retracts and electric brakes specific for this model
- Scale cockpit (minus pilot)
- Dual wall tail pipe (for 80-140N turbines)
- Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
- Air trap UAT
- Pre-prepared pushrods with ball links
- Required Engine: 80-140N
- Required Servos: 8 high torque (minimum 20kg) // Uses x1 per aileron, x1 per flap, x1 per elevator, x1 on rudder and x1 for steering
- Required all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories
PNP (Turbine Ready)
- Complete air frame (including aluminium wing-tubes and fibreglass control horns)
- Pilot-RC electric retracts and electric brakes specific for this model
- Scale cockpit (minus pilot)
- Dual wall tail pipe (for 80-140N turbines)
- Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
- Air trap UAT
- Pre-prepared pushrods with ball links
- 8X Pilot-RC high torque servos pre-installed
- Servo extension leads and navigation lights, all pre-installed
- Free wing bags
- Required Engine: 80-140N
- Required all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories
|
