The ToolkitRC M6DAC is a highly adaptable dual battery charger that provides a wide range of functions, including charging, synchronous charging, discharging, cycling, and smart charging for various types of batteries. It supports simultaneous charging of two batteries at up to 350W each, and when both channels are combined, it can deliver up to 700W for a single battery pack. This charger is compatible with numerous battery types, including LiPo, LiHV, LiFe, Li-ion (16S), NiMh (116S), and Pb (1~10S).

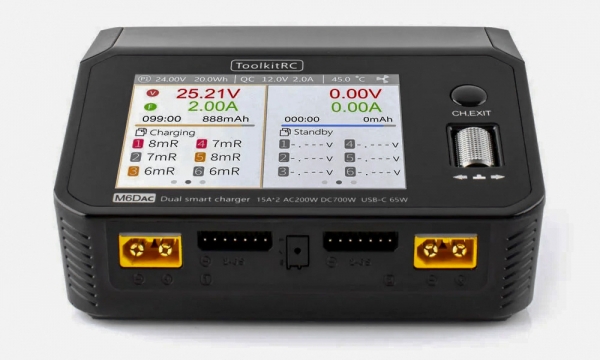

The M6DAC features a user-friendly interface with a large, easy-to-read, wide-angle, back-lit IPS 3.5" x 480x320 pixel full-color LCD screen, angled for optimal viewing. The interface can be navigated using a simple metal menu scrolling/enter wheel and an exit button for ease of use. The charger is equipped with AC and DC XT60 input sockets, 2 XT60 charging ports, 2 2~6S balance ports, and a USB port. It also has a powerful, intelligent, high-flow cooling fan that activates as needed to maintain optimal operating temperatures.

The ToolkitRC M6DAC balance charger/discharger is an indispensable tool for any modeler. It provides the flexibility to charge two batteries simultaneously, can be powered by both AC and DC sources, and features intuitive programming menus for easy navigation.

• Quickly and efficiently charge up to two batteries at the same time
• Rapidly charges and discharges LiPo, LiHV, LiFe, Li-ion, LTO, NiMh, and PB batteries
• Supports both AC and DC power supply modes: AC 100-240V; DC 7-28V
• Two simultaneous quick-charging channels for 1-6S LiPo, LiHV, LiFe, Lion, LTO, 1-16S NiMh, and 1-10S Pb batteries
• Built-in 200W power supply for convenient direct connection to an AC wall socket
• Up to 350W charging power per channel
• In synchronous mode, both channels can work together to charge a single battery, delivering up to 700W of power
• USB-C charging port (up to 65W)
• 3.5 inch IPS display LCD with 480×320 resolution
• Automatic fan speed control for reduced noise levels
• Compact and lightweight design
• User-friendly menu navigation
• Multilingual user interface
• Intuitive metal scroll wheel with excellent tactile feedback
• 250W @MAX 15A*4 DC IN
• 200W @MAX 15A*2 AC IN
• 100W @MAX 15A*4 AC IN
• 500W @MAX 25A CH2+CH3 SYNC
• Discharging power MAX 3A@12W*4 normal mode MAX 15A@250W*4 recycle mode.
• Charging accuracy <0.005V.
• Balancing current 800mA.
• Built-in 15W wireless charging.
• Built-in 65W C/30W A fast charger.
• Lithium battery cut-off voltage can be set (TVC).
• Automatically allocate input power.
• Multi-language system, can set any language.
• Can record 32 commonly used batteries.
• Can record 3 groups of commonly used power sources, convenient and fast translation.

• ToolkitRC M6DAC 2-Channel 350W / 700W AC/DC Smart Quick Dual Charger/Discharger
• 100-240V AC Power Cord
• USB-A to USB-C Cable
• User manual
