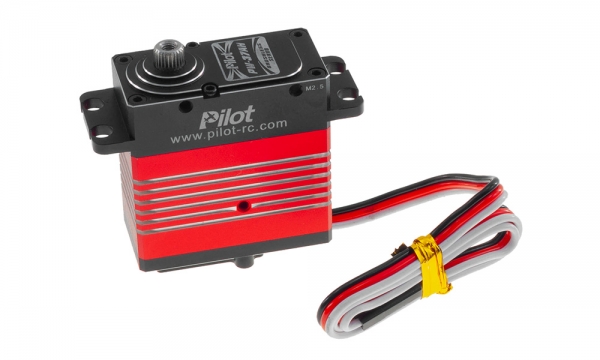

Pilot-Rc's range of servos offer a mix between torque, speed and importantly affordability. They are designed around modellers, which is why they come packed with features and ready to hold up to even the toughest of jobs.
|
- Interchangeable servo leads
- Comes ready to use with a standard 300mm(12") lead
- Included a 1700mm (67") lead that can be shortened according to your requirements (Remove the servo's lower casing, switch the default short 300mm lead with the included 1700mm one, and crimp the JR connector provided)
- Servo uses standard connectors at its end, allowing easy lead replacement
- Includes an 1.6" aluminum servo arm to handle even the toughest jobs
|
- PW-37AH (37Kg) Steel Gear 25T Servo w/ 300mm(12") wire lead
- 1.6" Aluminum arm
- Nylon double servo arm
- 1700mm (67") servo wire lead
- Futaba connector with pins
- Other mounting accessories (screws, rubber grommets and brass eyelets)
|
| Type | Brushless digital |
| Voltage | 5.0v-8.4v |
| Torque | 37.8kg (525 oz) at 8.4v35.5kg (493 oz) at 7.4v |
| Speed | 0.07s at 8.4v0.08s at 7.4v |
| Weight | 93g (3.3 oz) |
| Dimensions | 40mm x 20mm x 39.85mm |
| Spline | 25T (Futaba) |
| Gear | Steel |
| Bearings | Yes (x2) |
|
