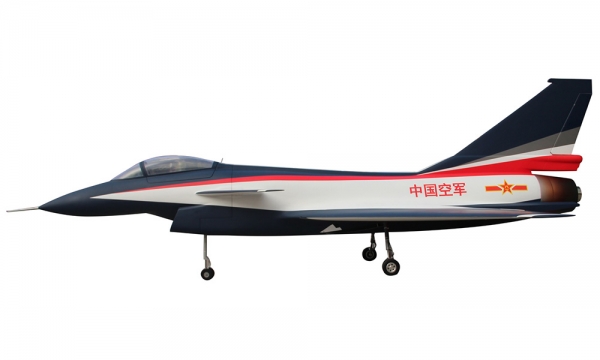

Pilot-RC: Chengdu J10-B (2.84m) 112"
Overview
When you want the king of 3D jet’s, you want the Pilot-RC J-10. But, what if you want a scale jet? You still want the Pilot-RC J-10! World known for it’s amazing 3D capabilities, while still not straying too far from the realm of what could almost be scale flying due to it’s delta wing shape and high alpha performance. Designed with the latest 3D tendencies, the technologies now available and the most popular power plant options on the market, this J10 is both light, strong and with flying characteristics to match the killer looks, whether you want simple acrobatics on unlimited 3D, this is the machine for you.
Features
Extremely lightweight full composite construction especially designed for outstanding 3D performance
Painted outside the mold so no seam lines
Ultra strong and light weight landing gear mounts, with factory installed blind nuts so mounting is just plug and play
Split fuselage design is joined with 5 screws and only batteries are installed in the nose section, meaning very easy connections and quick assembly at the field
Specially designed easy access to turbine for speedy installation
Wings are secured from the top
Two piece wing for easy transport
Specifications
Length
2,844mm (112") / pitot tube 150mm (5.9")
Wing Area
1,748 “² (11,276 cm²)
Weight
23.3 lbs (10.6 kg) with K210 turbine, dry and without batteries
Included Hardware (ARF)
Complete air frame (including carbon wing-tubes and preinstalled and painted fibreglass control horns)
Pilot-RC electric retracts and electric brakes specific for this model
Servo extension leads
Vector thrust pipe
4.000ml fuel tank (average 7-8 min with 210N size turbines)
250ml UAT tank
Pre-prepared pushrods with ball links
Required Hardware (ARF to RTF)
Engine: - 120-160N for normal sport flying
- 180-220N for 3D vector flight – Avoid high speed, high G flying<
Servos: Total x7 (x6 standard size + x1 medium size)
x6 standard size high torque (minimum 20kg)
x1 per aileron
x1 per vector
x1 on canard
x1 on rudder
x1 medium size servo (size: 35x15x30mm)
x1 for steering
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories
Recommended Hardware
Servos: Pilot-Rc PW35AH for canard and rudder
Servos: Pilot-Rc PW20AH for aileron and vector
Servos: Pilot-Rc PY10AH for steering
Servo arms: Pilot-Rc 1,2″ and 0,8″ Aluminium arms (included with Pilot-Rc servos)
Build Info
CENTER OF GRAVITY:
- 315-330mm from the leading edge of the wing root
CONTROL THROWS FOR NORMAL FLIGHT:
- Aileron/Elevator: 21mm
- Rudder: 22mm
- Canard: 21mm
- Vector elevator: 19mm
- Vector rudder: 9mm
CONTROL THROWS FOR 3D FLIGHT:
- Aileron/Elevator: 40mm
- Rudder: 30mm
- Canard: 36mm
- Vector elevator: 28mm
- Vector rudder: 20mm
Package & Build Options
Choose one of following Package Options from the drop-down menu
ARF PRO
- Complete air frame (including carbon wing-tubes and preinstalled and painted fibreglass control horns)
- Pilot-RC electric retracts and electric brakes specific for this model
- Servo extension leads
- Vector thrust pipe
- 4.000ml fuel tank (average 7-8 min with 210N size turbines)
- 250ml UAT tank
- Pre-prepared pushrods with ball links
- Required Engine:
- 120-160N for normal sport flying
- 180-220N for 3D vector flight – Avoid high speed, high G flying<
- Required Servos: 7 high torque // Uses x1 per aileron, x1 per vector, x1 on rudder, x1 on canard, and x1 for steering
- Required all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories
PNP (Turbine Ready)
- Complete air frame (including carbon wing-tubes and preinstalled and painted fibreglass control horns)
- Pilot-RC electric retracts and electric brakes specific for this model
- Servo extension leads
- Vector thrust pipe
- 4.000ml fuel tank (average 7-8 min with 210N size turbines)
- 250ml UAT tank
- Pre-prepared pushrods with ball links
- 7X Pilot-RC high torque servos pre-installed
- Required Engine:
- 120-160N for normal sport flying
- 180-220N for 3D vector flight – Avoid high speed, high G flying<
- Required all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories
|
